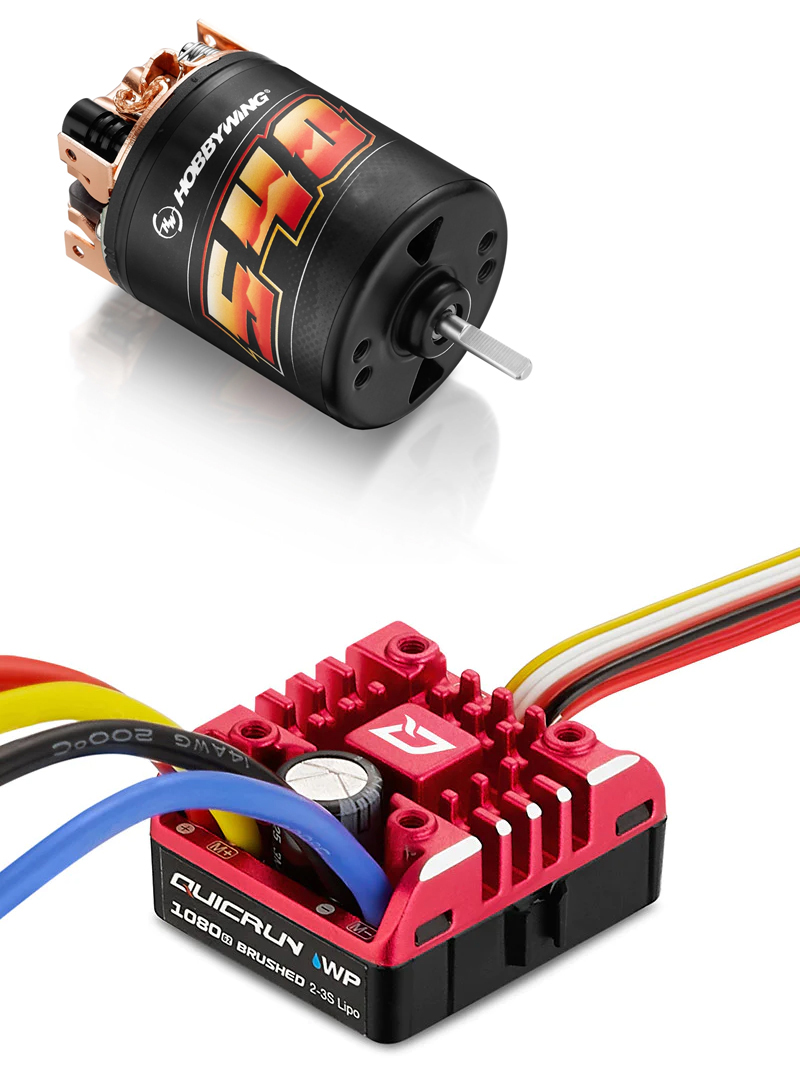

Features:Fully Water-proof and dust-proof, suitable for all-weather races.Small in size, with a built-in capacitor module.Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.Real-Time Adjustment of Drag Braking Force.15 programmable parameter itemsPWM Frequency: 1K/2K/4K/8K/16K AdjustableFreewheeling (DEO) capabilityDrag brake rate in 9 levels (adjustable)Electronic switchAluminum case for great heat dissipationGreat current endurance capability.Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4VAutomatic throttle range calibration, easy to use.Multiple protections:Over Voltage ProtectionLow voltage cut-off protection for batteryOver-heating protectionThrottle signal loss protection, and much moreESC Specifications:Brushed ESC: WP 1080 G2 p/n: 30120202Waterproof: YesDual Mode: NoFwd Cont. / Peak Rev Cont. / Peak: 80A / 400ACar Applicable: 1/10 Rock CrawlerMotor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T or\RPM<3000@7.4V; 3S LiPo or 9S NiMH, =16T or RPM<2000@7.4VBattery: 2-3S LiPo or 5-9S NiMHBEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)PWM Frequency: Adjustable 1K/2K/4K/8K/16KWires: 14AWG-200mm w/ XT60 ConnectorSize/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)External Program Port: Separate Port AvailableProgramming: LED Program cardWeight*: 70.2g w/ wire and connectorsMotor Specifications:Model: QUICRUN Brushed 540PN: 30404313Slot: 3Turns: 30T(RPM@7.4V): 14000Input Voltage: 12.6VDiameter/ Length(mm): ɸ=36mm(1.42in) L=53mm(2.09in)Shaft Diameter/ Length (mm): ɸ=3.175mm(0.125in) L=16.5mm(0.65in)Applications: 1/10 On-road / Buggy / Crawler & 2WD TruckWeight: 168g
