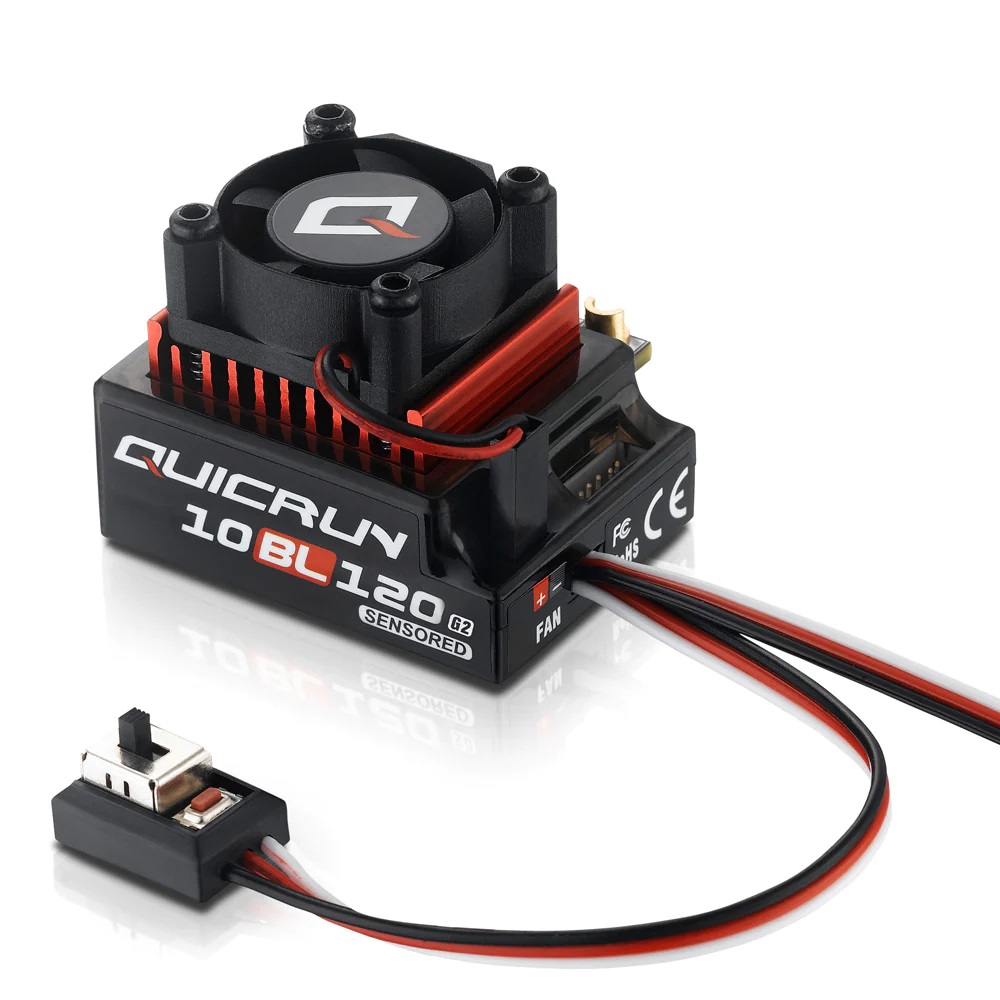

Note:The recommended T counts are only applicable with the standard 3650(540) size 2 pole motors and the timing of esc is 0.This ESC is NOT designed for a racing application.Features:For 1/10, 1/12 Car general use.High performance but low price, users can own this reliable ESC at an affordable cost.Sensored programmable electric speed controller for a brushless motor.Compatible with LCD program box PRO, LED Program Card (purchase separately).Specifications:Cont./Peak Current: 120A / 760AMotor Type: Sensored/Sensorless Brushless MotorApplications: 1/10 Touring, Buggy, DriftMotor Limit: 2S LiPo: >4.5T; 3S LiPo >10.5T 3650 Size MotorLiPo Cells: 2-3S LiPoBEC Output: 6V/7.4V @ 4A (Switch-mode)Cooling Fan: Powered by built-in BECSize/Weight: 44(L) x 36.8(W) x 32.3(H) / 101.5g(W/Wires)Programming Port: Throttle Cable
