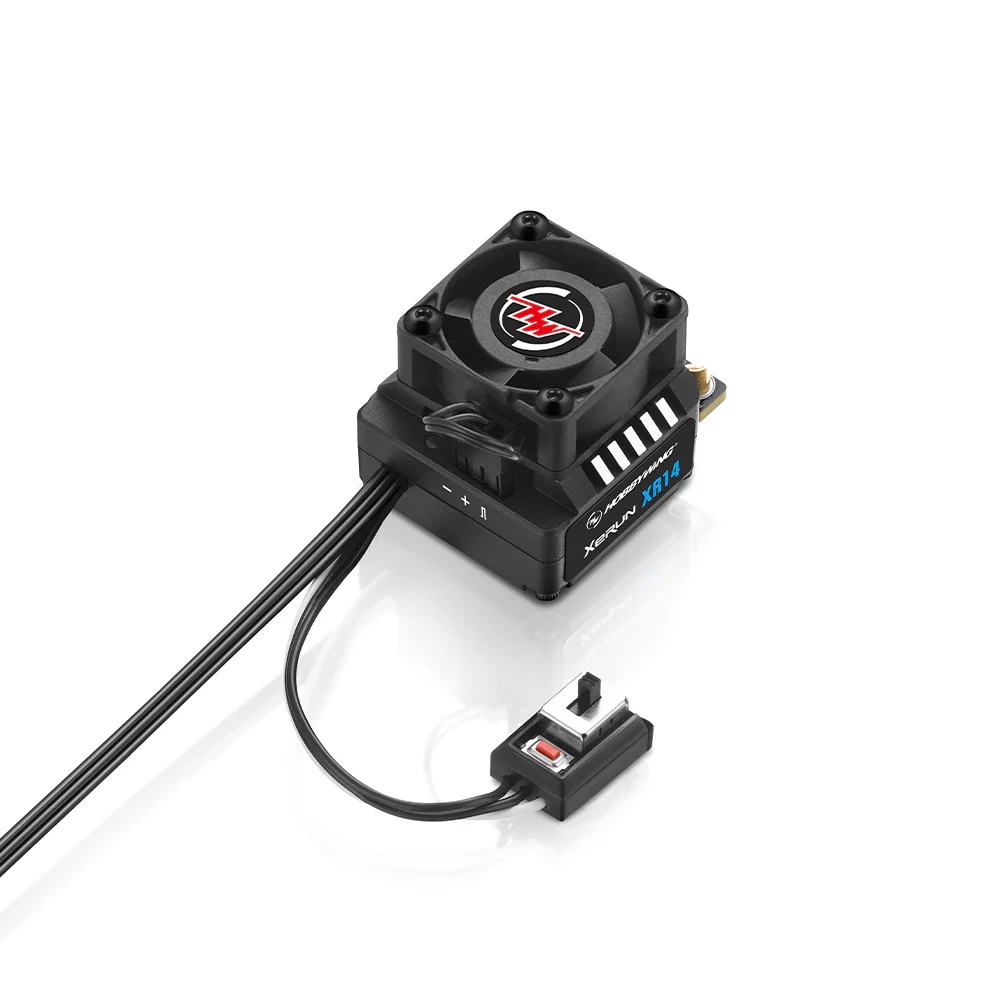

XERUN XR14: Take your 1/14 scale racing to the next level!Includes:(1) XERUN XR14 ESC(1) Manual(1) Double Sided Tape, DecalFeatures:Two selectable profiles tailored for RC car racing.Adjustable PWM and brake frequencies allow precise regulation of motor driving and braking forces.Innovative softening function by HOBBYWING enables power delivery tuning for enhanced driving efficiency.Comprehensive protections include low-voltage cutoff, ESC and motor thermal protection, fail-safe (throttle signal loss), and reverse polarity protection.Data recording function supports OTA Bluetooth module to view power system running data via the HW LINK App, simplifying performance analysis.Firmware upgrades available through Hobbywing LCD Program Box Pro/G2 or OTA Programmer (sold separately).ESC Specifications:Cont./Peak Current: 70A/3000A LiPo/NiMH Cells: 2S LiPo BEC Output: 6V/7.4V @ 4A(Switch-mode) Cooling Fan: Powered by the BEC voltageMotor Limit: KV=6000 or =8.5T 2848(380)&3650(540) size motor Size: 35.2 x 31.3 x 28.5mm (w/Fan) Weight: 66g(w/ wires) Programming Port: Shared with Fan port
