New AR Blue Clean Pressure Washer Replacement Pump 2/2500 Gray

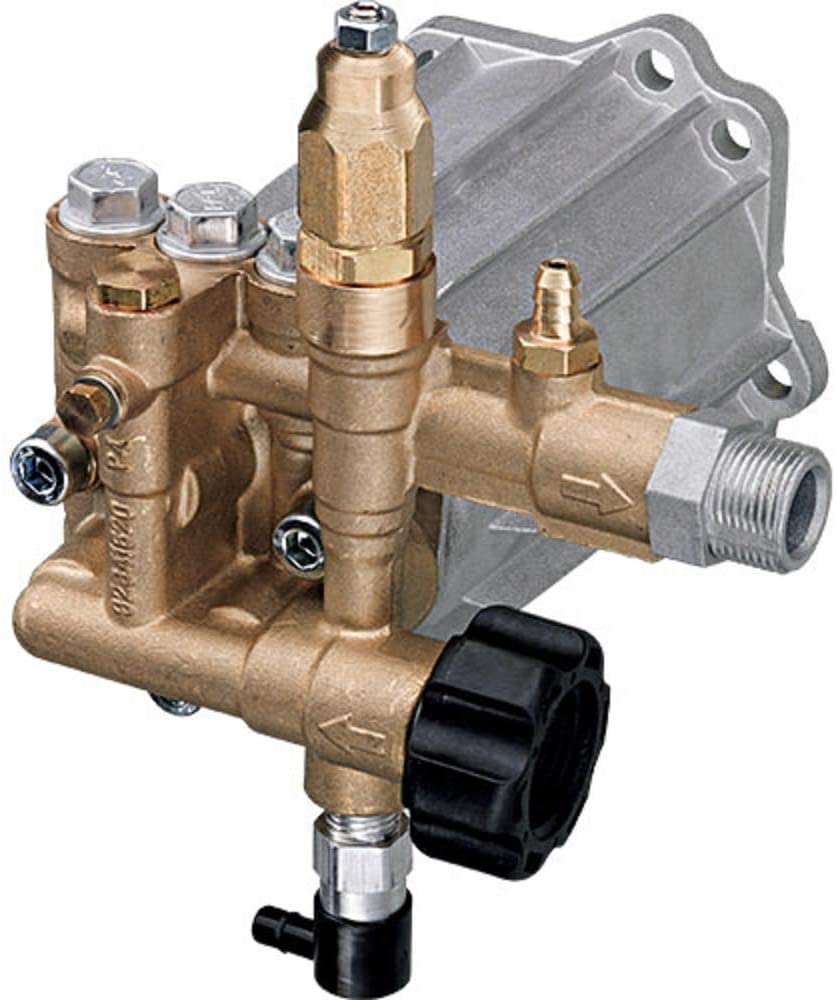

Annovi Reverberi RMV2G25D horizontal plunger pump. Up to 2 GPM at 2500 PSI. It spins at 3,400 RPM in a direct drive system coupled with a gasoline engine. The matching flange provides convenient connection to most 3/4 shaft 4 - 7 HP engines. The hollow shafted pump includes a built-in pressure control valve, and chemical injection system. 3-piston alternating volumetric pumps for use oncleaning units Can be directly coupled to various types of motors Pump body in die-cast aluminum alloy Pistons driven by swash plate mechanism Two bearing systems, to support the pump shaft and pistons Pistons in hardened and tempered steel Pump head in pressed brass Double gasket sealing system Intake valves fitted above the pistons for greater efficiency Integral regulating valve Optional detergent suction system Different delivery connections available RPM: 3,400 Shaft size: 3/4 Max GPM: 2 Max PSI: 2,500 Inlet Thread: 3/4 GHA Discharge Thread: 22mm x 14M Specifications Max GPM 2 Max L/Min 7.6 Max PSI 2500 MaxBar 172 Power EBHP 3.4 Bore Dia mm 12 Stroke mm 7.58 Crankshaft ID Stamp 7 Inlet 3/4" GHA Outlet 22mmx1.4 M Max Temp 140° F Oil Capacity (oz) 2.2 Weight 7.5 RPM 3400 Shaft Size 3/4" Shaft Version D Shaft Type HollowFeatures
- Max GPM 2
- Max PSI 2500
- Inlet 3/4" GHA
- Outlet 22mm x 1.4 M
- RPM 3400
